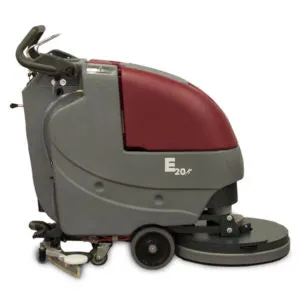

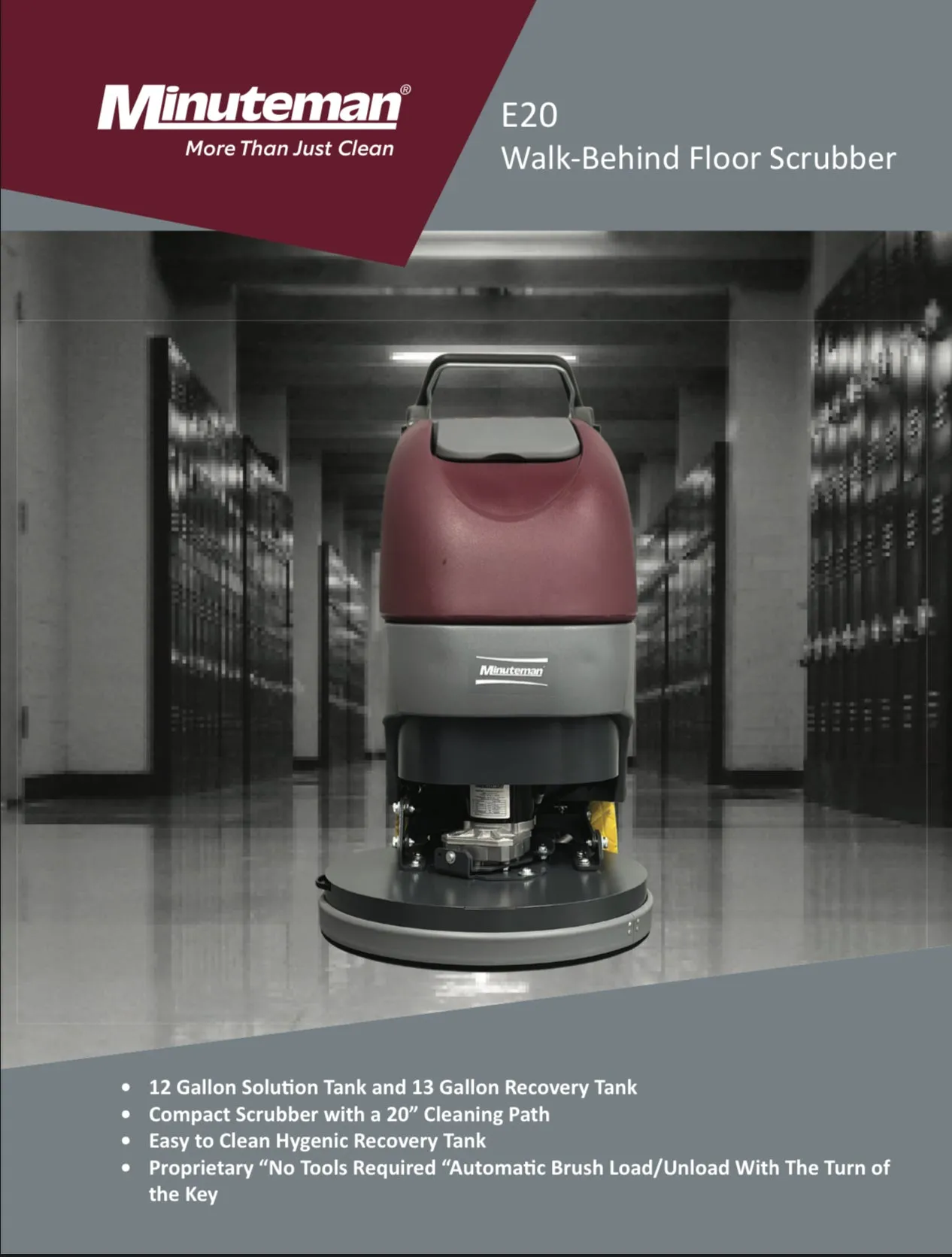

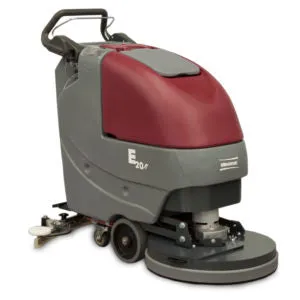

Minuteman E20 [Brush Drive 20”] - Automatic Floor Scrubber
Part Number: E20BDQP
(20” Disc Drive)
Key Features:
- Performs daily walk behind scrubbing and or the removal of floor finish to effectively clean and restore floors.
- Brush loading/unloading is as easy as the turn of a switch, the operator never has to manually remove the brushes
- 12 gallon solution tanks and 13 gallon recovery tanks
- Squeegees are designed so that no operator adjustment is necessary
- Parabolic squeegee standard on traction drive models
- Easy-to-clean, hygienic recovery tank
- When the on-board charger is plugged in, the machine is not operable
- Adjustable handle and ergonomic hand bails offer superior handling of the machine
- This Traction drive model offers ergonomic, adjustable speed regulation with the turn of a dial
General Overview
- The E20 is a compact scrubber with a 20” cleaning path and is available in the disc and cylindrical models. The disc model is offered in brush drive or traction drive and the cylindrical model is traction drive.
- Advanced technology makes the E20 a part of the innovative walk-behind scrubber line, the E Series.
Easy of Use:
- The E20 is a compact scrubber with a 20” cleaning path and is available in the disc and cylindrical models. The disc model is
offered in brush drive or traction drive and the cylindrical model is traction drive. - Advanced technology makes the E20 a part of the innovative walk-behind scrubber line, the E Series.
- Easy-to-understand controls ensure that the machine is simple to operate.
- The compact and sleek design results in total operator comfort by focusing on ergonomics and provides an excellent
line of sight to the area to be cleaned. - The adjustable handle and ergonomic hand bails offer superior handling of the machine and the traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial.
- The E20 contains an on-board charger that is convenient and allows the machine to be charged anywhere.
- When the on-board charger is plugged in, the machine is not operable.
- The brush loading/unloading is as easy as the turn of a switch and the operator never has to manually remove the brushes.
- A parabolic squeegee is standard.
- A parabolic squeegee is standard on both models. The squeegees are designed so that no operator adjustment is necessary.
- This vacuum contains 12 gallon solution tank and a easy-to-clean, hygienic, 13 gallon recovery tank.
============ Specifications ============
- Current (Max) ………………… 32 amps
- Sound Level ……………………. 69 dBA / 65.5 dBA
- Cleaning path width ….……. 20 in (51 cm)
- Squeegee width ……………… 34 in (86 cm)
- Theoretical productivity ….. 20,000 ft2 /hr (1,858 m2)
- Working speed ………………… 2.3 mph (3.7 km/hr)
- Rated voltage ………………….. 24 volts
- Vacuum flow ……………………. 65 cfm (110 m3/hr)
- Vacuum waterlift ……………… 45 inches (112mbar) / 46 inches (115mbar)
- Vacuum power …………………. .60 HP (450 W)
- Brush type ……………………….. Disc
- Brush motor(s) power ……… 3/4 HP (560W)
- Number of brushes ………….. 1
- Brush RPM ………………………. 180 RPM
- Aqua-Stop equipped ……….. Available
- Solution capacity …………….. 12 Gal (45 liters)
- Recovery capacity …………… 13 Gal (49 liters)
- Working Grade ………………… 2%
- Weight with batteries ………. 313 lbs (142 kg)
- Weight without batteries …. 203lbs (92 kg)
- Dimensions (LxWxH) ……….. 47.4 x 21.3 x 42.3 (120.4 x 54.1 107.4 cm)
Green Features:
- Sound level < = 70dBs
- Maintenance free gel batteries available
- Tool free brush removal
- Tool free squeegee removal
- One button operation
To review “Parts and User Manuals”, please . A new window will redirect you to the Minuteman E20 Cylindrical Commercial Floor Scrubber direct site. Scroll down to the bottom of the page and Click on the “Parts and User Manuals” Section, then click in the PDF file you are interested in reviewing.
